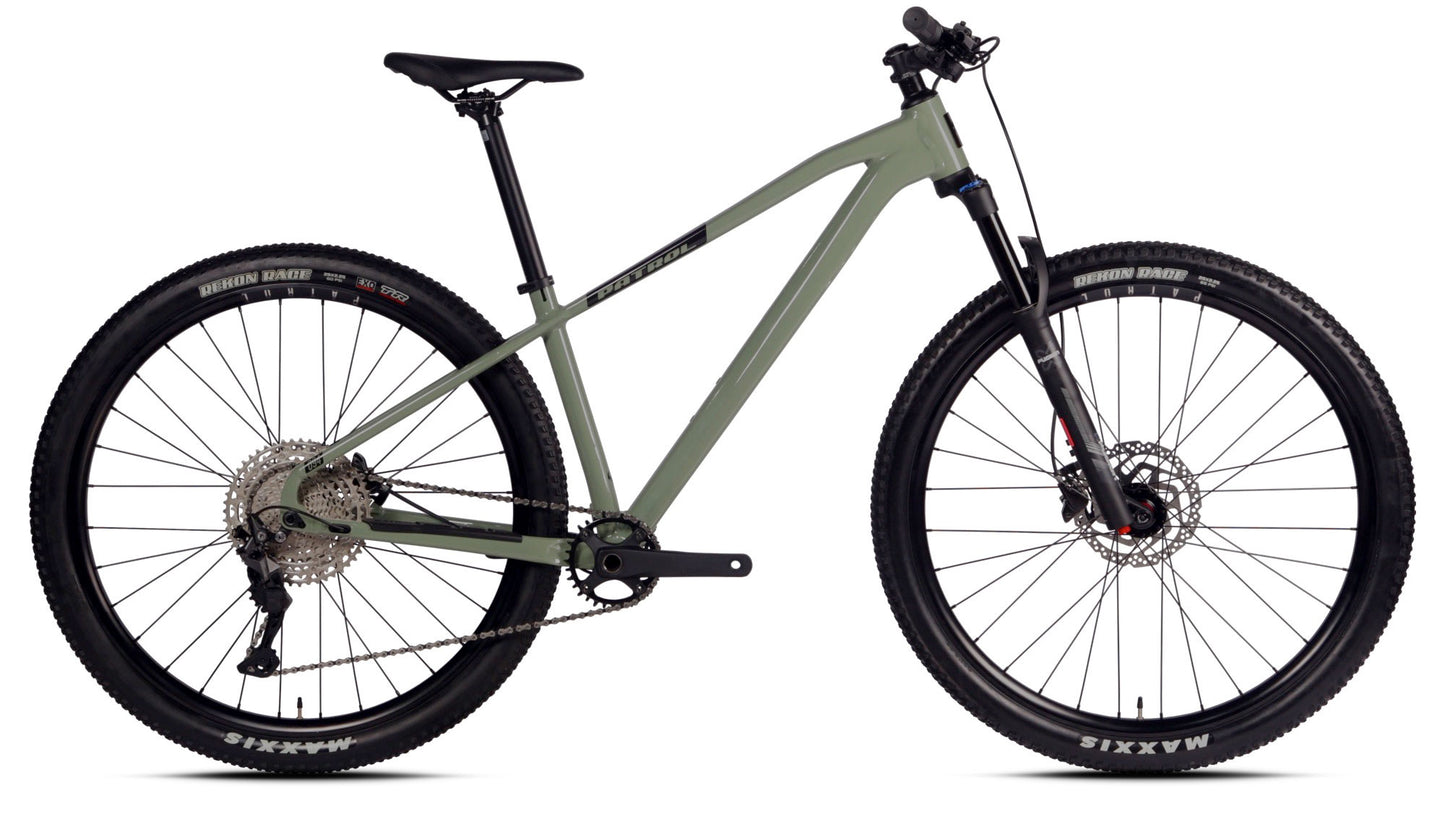

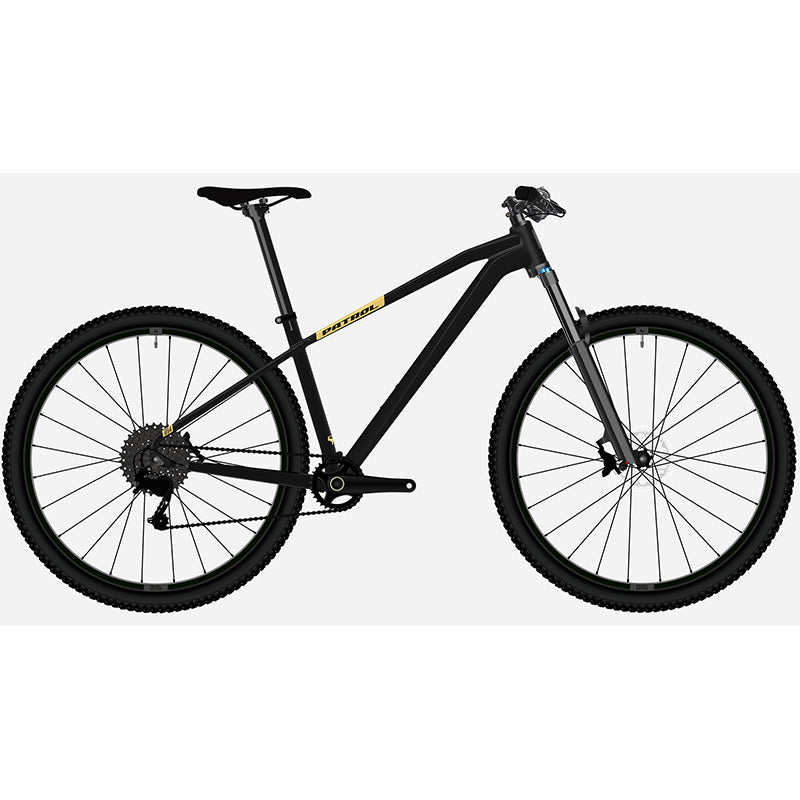

PATROL 094 ALLOY
PATROL 094 ALLOY
Regular price
$1,999.00 AUD
Regular price
Sale price
$1,999.00 AUD
Unit price
per
XC ALLOY HARDTAIL
These hardcore hardtails might look like XC whips, but their geometry is pure enduro. These sleek alloy frames use new internal cable routing through the headtube and hidden compartment in the downtube for a spare gear hanger.
Long and low ensures riders of all sizes can enjoy the benefits of longer reach and a slacker head angle without sacrificing standover. The new 09 geometry allows riders to size up or size down depending on what style of riding they intend to do. Go long for all-out speed, or choose short for an agile and playful ride.
Specifications
| Enduro | |
|---|---|
| PATROL C092 | Alloy 29er hardtail |
| Wheels | |
| Rear | PATROL, alloy, 32h |
| Rear Tyre | MAXXIS Rekon Race, 29×2.25 |
| Front | PATROL, alloy, 32h |
| Front Tyre | MAXXIS Rekon Race, 29×2.25 |
| - | |
| - | |
| Frameset | |
| Frame | PATROL alloy hardtail XC-trail, 12×148 mm |
| Drivetrain | |
| Chainrings | WHEEL TOP SR-11-C, 32t |
| Shift Levers | SHIMANO Deore M5100 |
| Crankset | - |
| Chain | - |
| Rear Derailleur | SHIMANO Deore M6100, 12s |
| Bottom Braket | - |
| Cassette | SHIMANO Deore M5100-11, 11-51t |
| Cockpit | |
| Seatpost | KS KSP900-I remote, 31.6mm, 150mm (S/M) – 175mm (L/XL) |
| Saddle | - |
| Stem | - |
| Handlebars | - |
| Grips | - |
| Brakes | |
| Rear Brake | SHIMANO MT200 |
| Front Brake | SHIMANO MT200 |
| Suspension | |
| Fork | X-FUSION RC32, 130mm travel, TA 15×110 |
| Rear Shock | None |
* Specifications are subject to change without notice.
Geometry
| Small | Medium | Large | X-Large | |
|---|---|---|---|---|
| 1 Head Tube Angle | 67° | 67° | 67° | 67° |
| 2 Head Tube Length | 105mm | 110mm | 110mm | 115mm |
| 3 Top Tube Horizontal | 606mm | 631mm | 655mm | 685mm |
| 4 Reach | 425mm | 450mm | 475mm | 500mm |
| 5 Standover | 704mm | 708mm | 738mm | 780mm |
| 6 Stack | 630mm | 630mm | 635mm | 639mm |
| 7 Seat Tube Length | 400mm | 420mm | 460mm | 510mm |
| 8 Seat Angle | 74° | 74° | 74° | 74° |
| 9 Bottom Bracket Height | 311mm | 311mm | 311mm | 311mm |
| 10 Bottom Bracket Drop | -62.5mm | -62.5mm | -62.5mm | -62.5mm |
| 11 Chainstay Length | 440mm | 440mm | 440mm | 440mm |
| 12 Wheelbase | 1157mm | 1182mm | 1206mm | 1234mm |
