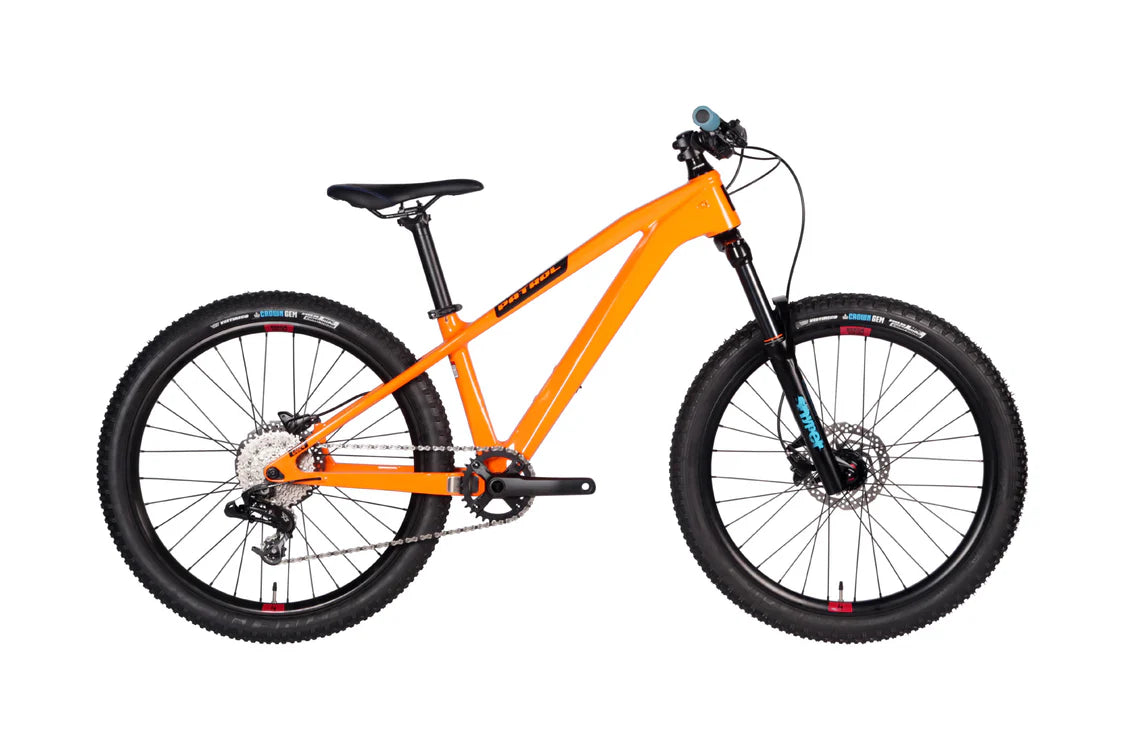

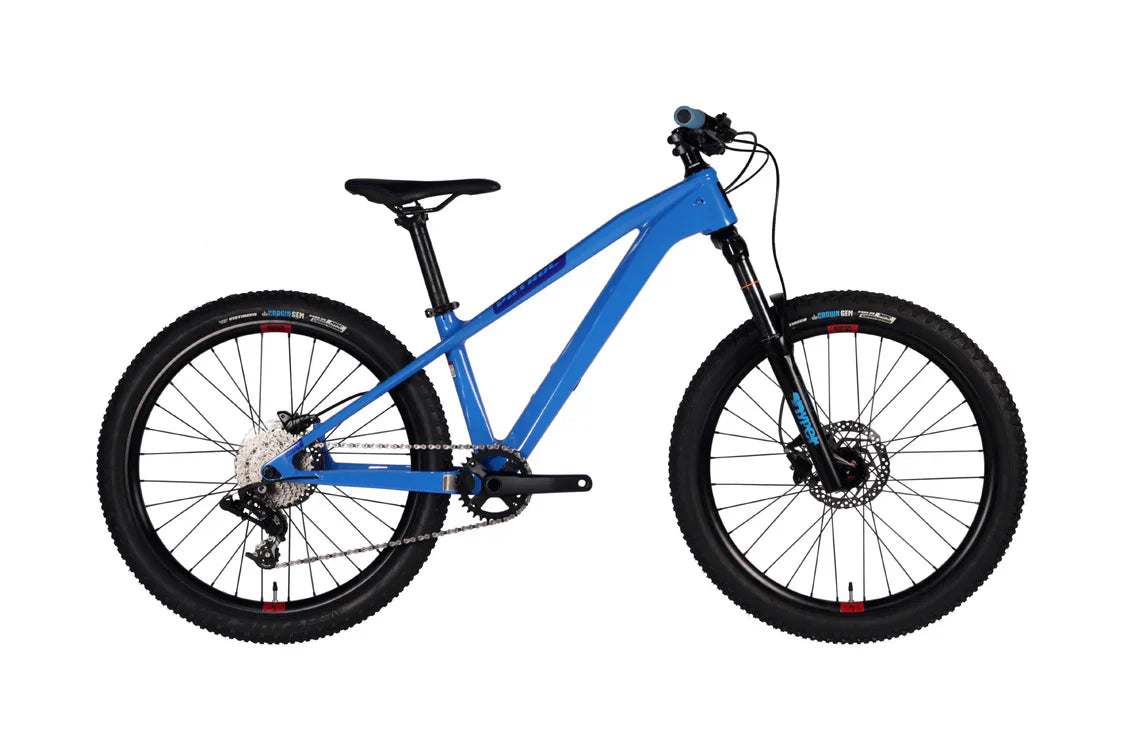

Patrol C024 CARBON S-SPEC
Patrol C024 CARBON S-SPEC
World's first production carbon kids MTB.
Swap the screen for some singletrack with the all-new Carbon kids’ range from Patrol Mountain. Young riders like to shred as hard, ride as far and explore as much as adults do, so it makes sense to us that your little shredder should be on a bike that they’re completely comfortable with.
“Using a full carbon frame construction, the new C020 and C024 kid’s bikes have high end features like internal cable routing, a tapered head tube, clearance for big tires, and even a bottle cage mount inside the front triangle.” – BIKE RUMOR
Specifications
| Frameset | |
|---|---|
| Frame | PATROL 024 Carbon, 12×148 Boost |
| Wheels | |
| Rims | PATROL RIMS MD30 with |
| Rear Hub | PATROL hubs, 32h |
| Inner Tubes | - |
| Spokes | - |
| Rear Tire | VEE Crown Gem, 24×2.6 |
| Front Tire | VEE Crown Gem, 24×2.6 |
| Front Hub | PATROL hubs, 32h |
| Drivetrain | |
| Chainrings | Shimano |
| Shift Levers | SRAM GX |
| Crankset | SAMOX, 155mm, 32t |
| Chain | - |
| Rear Derailleur | SRAM GX, 10s |
| Bottom Braket | - |
| Cassette | Steel, 10s, 11-34t |
| Cockpit | |
| Seatpost | - |
| Saddle | - |
| Stem | PATROL Enduro (Forged alloy, 4-bolt, 5mm rise, 40mm) |
| Handlebars | - |
| Grips | - |
| Brakes | |
| Rear Brake | SHIMANO MT200 |
| Front Brake | SHIMANO MT200 |
| Suspension | |
| Fork | MANITOU Machete Junit, 120mm travel |
* Specifications are subject to change without notice.
Sizes
| ONE-SIZE | |
|---|---|
| 1 Head Tube Angle | 67° |
| 2 Head Tube Length | 105mm |
| 3 Top Tube Horizontal | 520mm |
| 4 Reach | 335mm |
| 5 Standover | 599mm |
| 6 Stack | 540mm |
| 7 Seat Tube Length | 320mm |
| 8 Seat Angle | 73° |
| 9 Bottom Bracket Height | 284mm |
| 10 Bottom Bracket Drop | -24.9mm |
| 11 Chainstay Length | 385mm |
| 12 Wheelbase | 1006mm |
Disclaimers
Everybody is different, so the values in our tables are only guideline values. For example, women and men differ greatly in their body proportions. The frame sizes are the same for men's bicycles and women's bicycles. However, what clearly differs is the frame geometry. In some cases the top tube is shorter for women's bikes, in simpler terms: the distance from the saddle to the handlebar is shorter to better suit the female physiology.
Additionally, regardless of your gender, different people may have different length arms, legs, reach etc. which can skew the ideal frame size. It’s also worth noting that the size of the wheels can play a role, particularly in Mountain Bikes. The bigger the wheels (29er for instance) the taller the bike is.
Between Two Bike Sizes?
If you fall between two sizes, no need to worry! Many bikes have an adjustable stem, so you can change the angle of the handlebars until the bike fits comfortably. And last but not least, the frame size can influence the handling characteristics, so if you’re after a nimble handling frame you can choose the smaller size or if you’re after additional stability, a larger frame may be best for you. Our rule of thumb: The more time you plan on spending on your bike, the more attention you should pay to the size and fit of your bike. A professional bike fit will go a long way to ensuring you’re both comfortable and efficient on the bike and is highly recommended to keep you and your bike performing at their optimum!
