Patrol
PATROL CG700 CARBON
PATROL CG700 CARBON
Regular price
$6,999.00 AUD
Regular price
Sale price
$6,999.00 AUD
Unit price
per

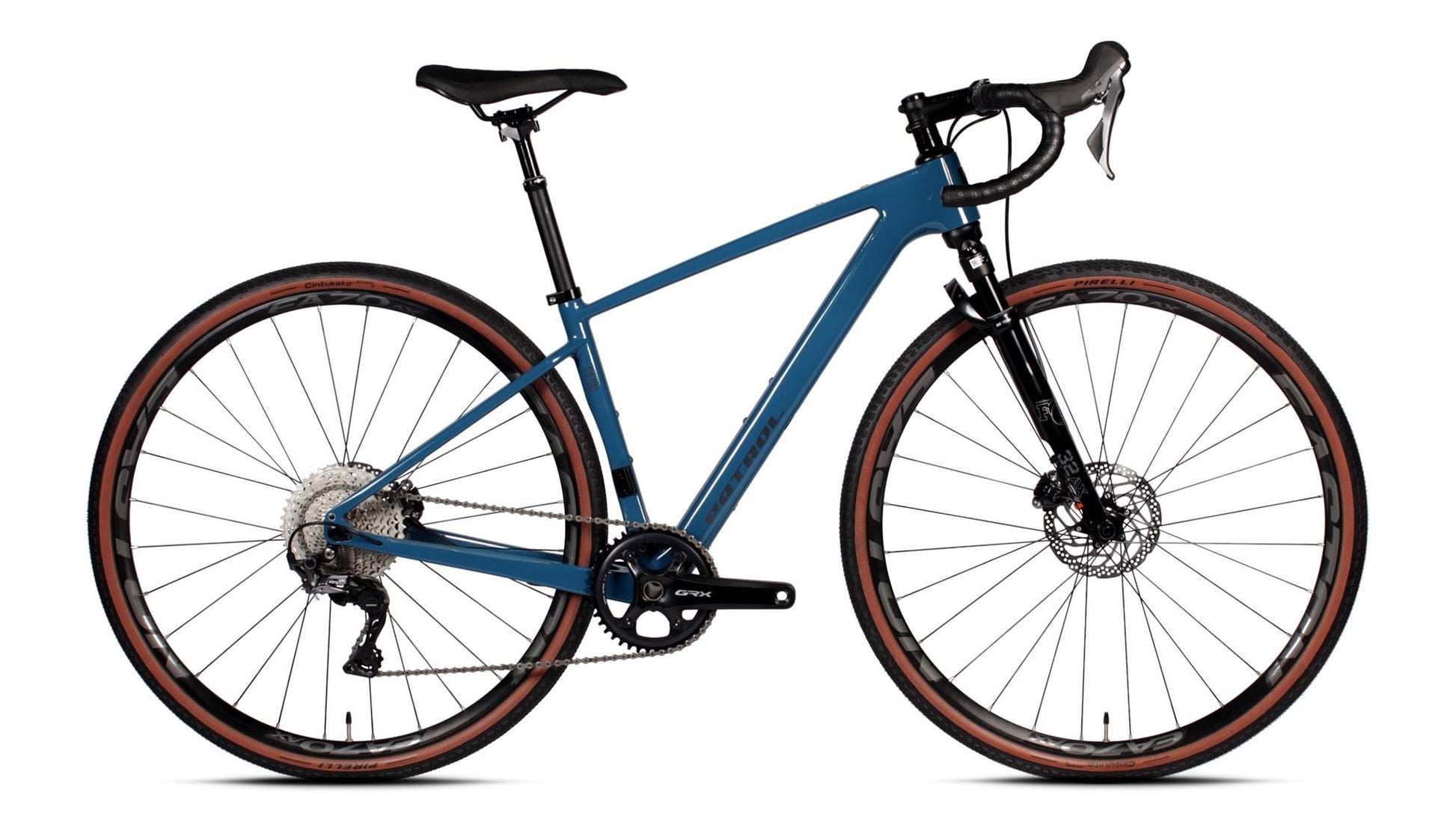

The Patrol CG700 is a gravel bike made with off-road ability and adventure in mind. Sporting a versatile carbon frame, 700c wheels and Fox gravel suspension, the Patrol CG700 is the perfect bike for weekend adventures, a post-work ride, and even commuting the urban jungle.
The CG700 gravel bike loves the dirt as much as the asphalt.
Specifications
| Frameset | |
|---|---|
| Frame | PATROL carbon gravel, 12×142 mm |
| Wheels | |
| Front Hub | EASTON Ea70 Ax |
| Front Tire | PIRELLI Cinturato™ Gravel H, 700×40c |
| Rear | EASTON Ea70 Ax |
| Rear Tire | PIRELLI Cinturato™ Gravel H, 700×40c |
| Drivetrain | |
| Shift Levers | SHIMANO GRX Rx810 |
| Cassette | SHIMANO Slx M7000, 11s, 11-42t |
| Chainset | SHIMANO GRX Fc-Rx810-1, 42t |
| Rear Derailleur | - |
| Cockpit | |
| Seatpost | FOX Transfer Sl Performance, 27.2mm, 50mm |
| Handlebars | EASTON EA70, 420mm |
| Brakes | |
| Rear Brake | - |
| Front Brake | - |
| Suspension | |
| Fork | FOX Performance, 32 Taper Cast 40mm travel |
* Specifications are subject to change without notice.
Geometry
The PATROL CG700 is built around our custom carbon gravel frame. With suspension corrected geometry, the CG700 sports a 40mm travel FOX suspension fork for ironing out trail shock. The sleek carbon frameset features internal cable routing, stealth dropper post compatibility and plenty of mounts for racks and luggage.
Our no-compromise approach to specification means the CG700 Gravel bike is built to be durable, comfortable and above all else, fun!
| 49 | 52 | 54 | |
|---|---|---|---|
| 1 Head Tube Angle | 70.5° | 70.5° | 70.5° |
| 2 Head Tube Length | 95mm | 95mm | 105mm |
| 3 Top Tube Horizontal | 539mm | 548mm | 561mm |
| 4 Reach | 375mm | 383mm | 390mm |
| 5 Standover | 690mm | 706mm | 742mm |
| 6 Stack | 566mm | 568mm | 579mm |
| 7 Seat Tube Length | 410mm | 430mm | 470mm |
| 8 Seat Angle | 73.75° | 73.75° | 73.75° |
| 9 Bottom Bracket Height | 276mm | 276mm | 276mm |
| 10 Bottom Bracket Drop | -80mm | -80mm | -80mm |
| 11 Chainstay Length | 425mm | 425mm | 425mm |
| 12 Wheelbase | 1017mm | 1021mm | 1027mm |
