Patrol

Patrol E-FIVE 2022

Patrol E-FIVE 2022

Regular price $12,999.00 AUD
Regular price Sale price $12,999.00 AUD
Sale Sold out
Size
Color

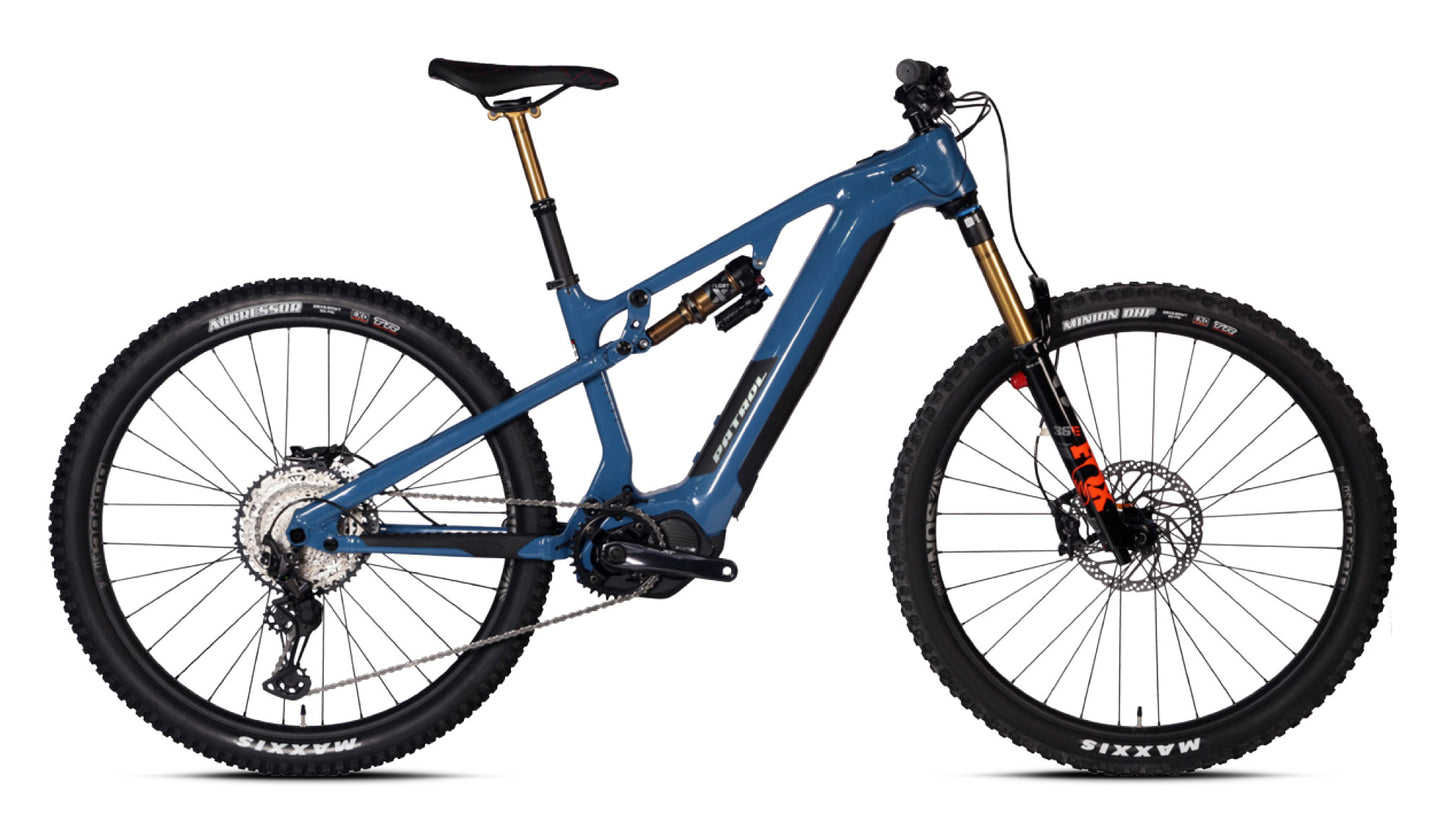

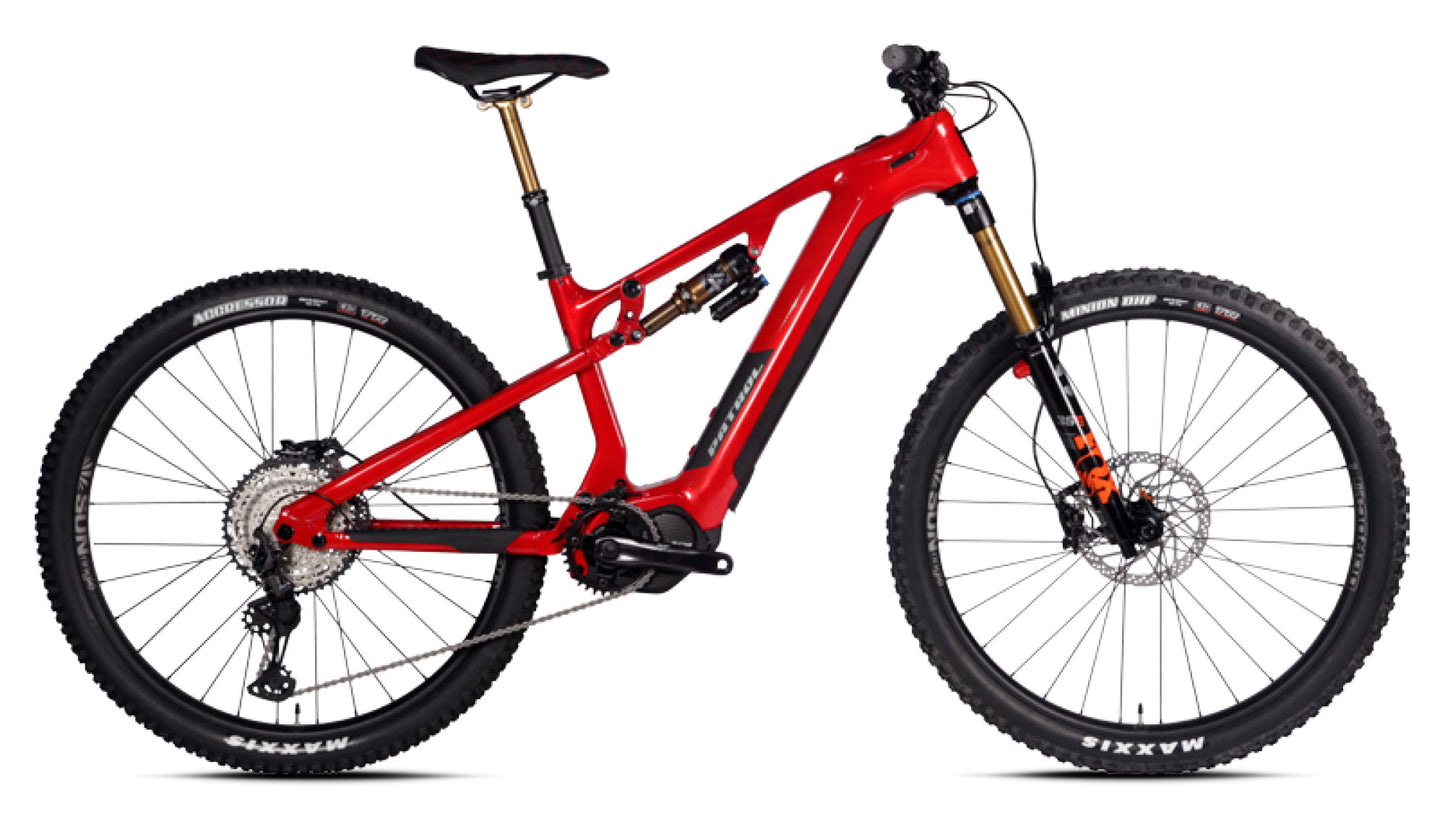

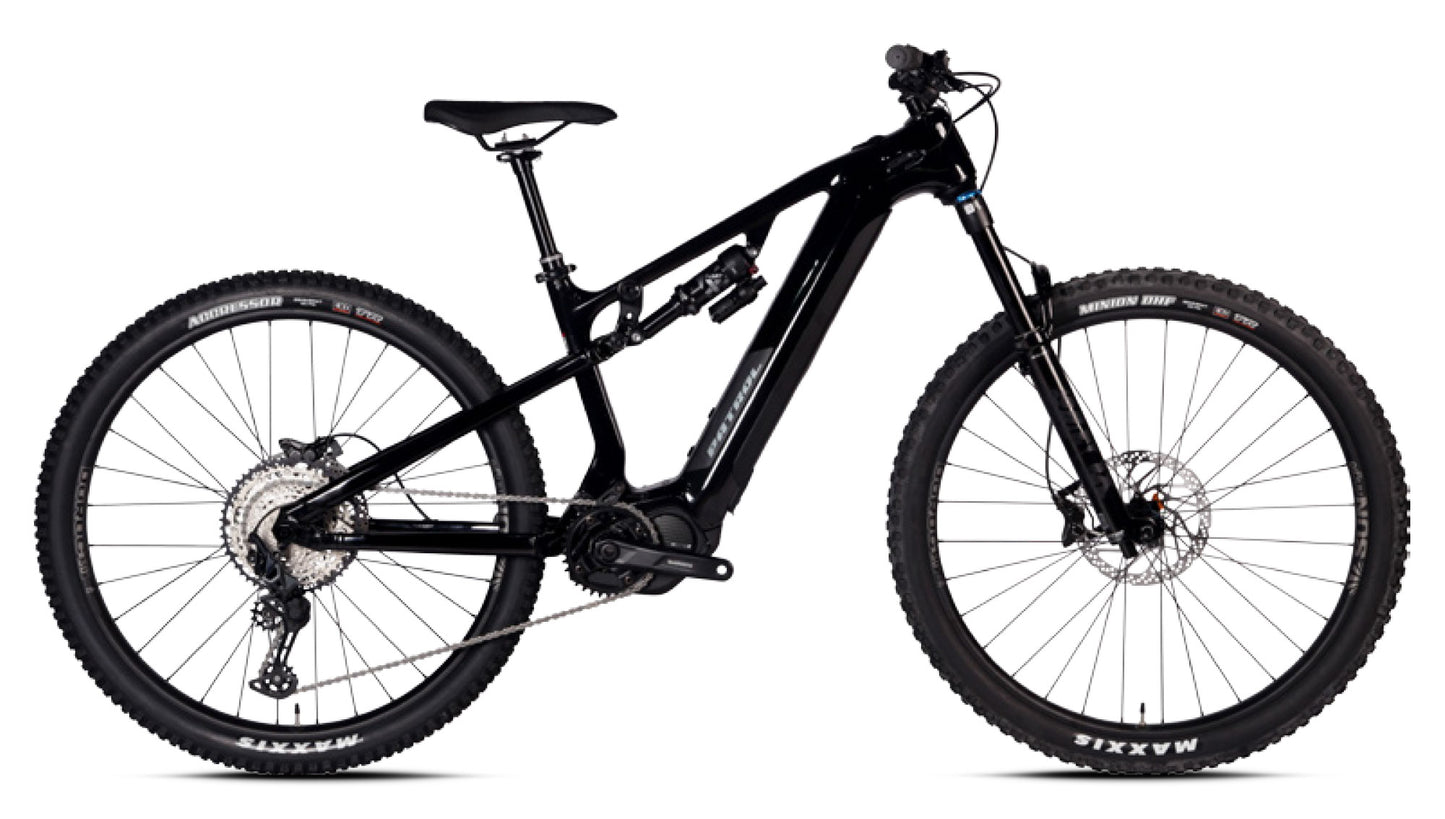

The all-new Patrol E-Five is our first ever trail eMTB. Built around a custom developed carbon fibre frameset with modern trail-ready geometry. The E-Five is for riders who enjoy riding uphill as much as they do riding back down again.

Our new carbon construction combines a complete Shimano EP8 motor, battery and control system, with a sleek chassis providing 130mm of rear-wheel travel matched with 150mm travel upfront. To ensure an agile riding character our engineers have located the 630Wh Shimano BT8035 battery in a low position to ensure a balanced centre of gravity for fast direction changes. The powerful Shimano EP8 motor provides 85nm of torque, is fully customisable via the Shimano E-Tube application, and has the option to switch between riding profiles on the trail.

View full details



Designed for combating the steepest and deepest of trails

Here at Patrol Mountain we have long understood and enjoyed the thrill of electric mountain biking. For the past few years, we have offered our rugged and dependable Patrol E-Six E-Enduro bike and our versatile Patrol E-Zero hardtail, but for 2022 our eMTB family is growing.


Specifications

E-Bike
Drive Unit (Motor) Shimano Steps EP8
Battery SHIMANO BT-E8036, 630Wh
Charger -
Frameset
Frame PATROL Carbon Electric Trail, 12x148mm, 130mm Travel
Wheels
Rims 29" Sun Ringle Duroc SD37 MTB Rim
Rear Hub SHIMANO SLX hubs
Inner Tubes -
Spokes -
Rear Tire VEE Tire Co. Attack HPL, 29×2.50
Front Tire VEE Tire Co. Attack HPL, 29×2.50
Front Hub SHIMANO SLX hubs
Drivetrain
Chainrings SHIMANO SM-CRE80-12-B, 34t
Shift Levers SHIMANO SLX M7100-R
Crankset SHIMANO FC-M8150, SM-CRE80-12-SB, 34t
Chain -
Rear Derailleur SHIMANO SLX M7100, 12s
Crankset SHIMANO FC-EM600, SM-CRE80-12-SB, 34t
Cassette Shimano SLX M7, 12s, 12-51t
Cockpit
Seatpost KS KSP900-i, 31.6mm, 125-175 mm
Saddle -
Stem Forged alloy, 4-bolt, 5mm rise, 40mm
Handlebars -
Grips -
Brakes
Rear Brake SHIMANO MT420, 4-piston
Front Brake SHIMANO MT420, 4-piston
Suspension
Fork FOX 36 E Factory, 150mm Travel
Rear Shock FOX Float X Factory



* Specifications are subject to change without notice.



Shimano DU-EP80 Drive Unit

Take on steep climbs and tough trails in full confidence with 85Nm increased maximum torque. EP8 delivers smooth, direct power to ensure you're always in complete control while experiencing a natural ride feeling.

  • Lightweight for better handling (2.6 kg)
  • Quieter to enjoy the trails without distraction
  • Sleek integration and appearance for improved aesthetics
  • More ground clearance for technical trails
  • Refined Trail mode
  • Responsive, especially noticeable when riding above 25km/h
  • Extensive customizable assistance
  • Durable and weather resistant for riding in all conditions
  • Improved heat management
  • Support when pushing your bike and walking. Riders can hop off and walk their bikes without needing to shift: 4km/h in any gear



Geometry

  Small Medium Large X-Large
1 Head Tube Angle 65° 65° 65° 65°
2 Head Tube Length 105mm 105mm 110mm 115mm
3 Top Tube Horizontal 574mm 605mm 629mm 647mm
4 Reach 430mm 460mm 480mm 500mm
5 Standover 724mm 725mm 726mm 732mm
6 Stack 621mm 621mm 625mm 630mm
7 Seat Tube Length 390mm 410mm 450mm 492mm
8 Seat Angle 76.9° 76.9° 76.9° 76.9°
9 Bottom Bracket Height 345mm 345mm 345mm 345mm
10 Bottom Bracket Drop -30mm -30mm -30mm -30mm
11 Chainstay Length 465mm 465mm 465mm 465mm
12 Wheelbase 1212mm 1242mm 1264mm 1286mm

Sizes

  CM INCHES
Small 162cm - 175cm 5'4ft - 5'9ft
Medium 172cm - 185cm 5'8ft - 6'1ft
Large 182cm - 195cm 5'12ft - 6'5ft
X-Large 192cm - 205cm 6'4ft - 6'9ft


Disclaimers

Everybody is different, so the values in our tables are only guideline values. For example, women and men differ greatly in their body proportions. The frame sizes are the same for men's bicycles and women's bicycles. However, what clearly differs is the frame geometry. In some cases the top tube is shorter for women's bikes, in simpler terms: the distance from the saddle to the handlebar is shorter to better suit the female physiology.

Additionally, regardless of your gender, different people may have different length arms, legs, reach etc. which can skew the ideal frame size. It’s also worth noting that the size of the wheels can play a role, particularly in Mountain Bikes. The bigger the wheels (29er for instance) the taller the bike is.

Between Two Bike Sizes?

If you fall between two sizes, no need to worry! Many bikes have an adjustable stem, so you can change the angle of the handlebars until the bike fits comfortably. And last but not least, the frame size can influence the handling characteristics, so if you’re after a nimble handling frame you can choose the smaller size or if you’re after additional stability, a larger frame may be best for you. Our rule of thumb: The more time you plan on spending on your bike, the more attention you should pay to the size and fit of your bike. A professional bike fit will go a long way to ensuring you’re both comfortable and efficient on the bike and is highly recommended to keep you and your bike performing at their optimum!
