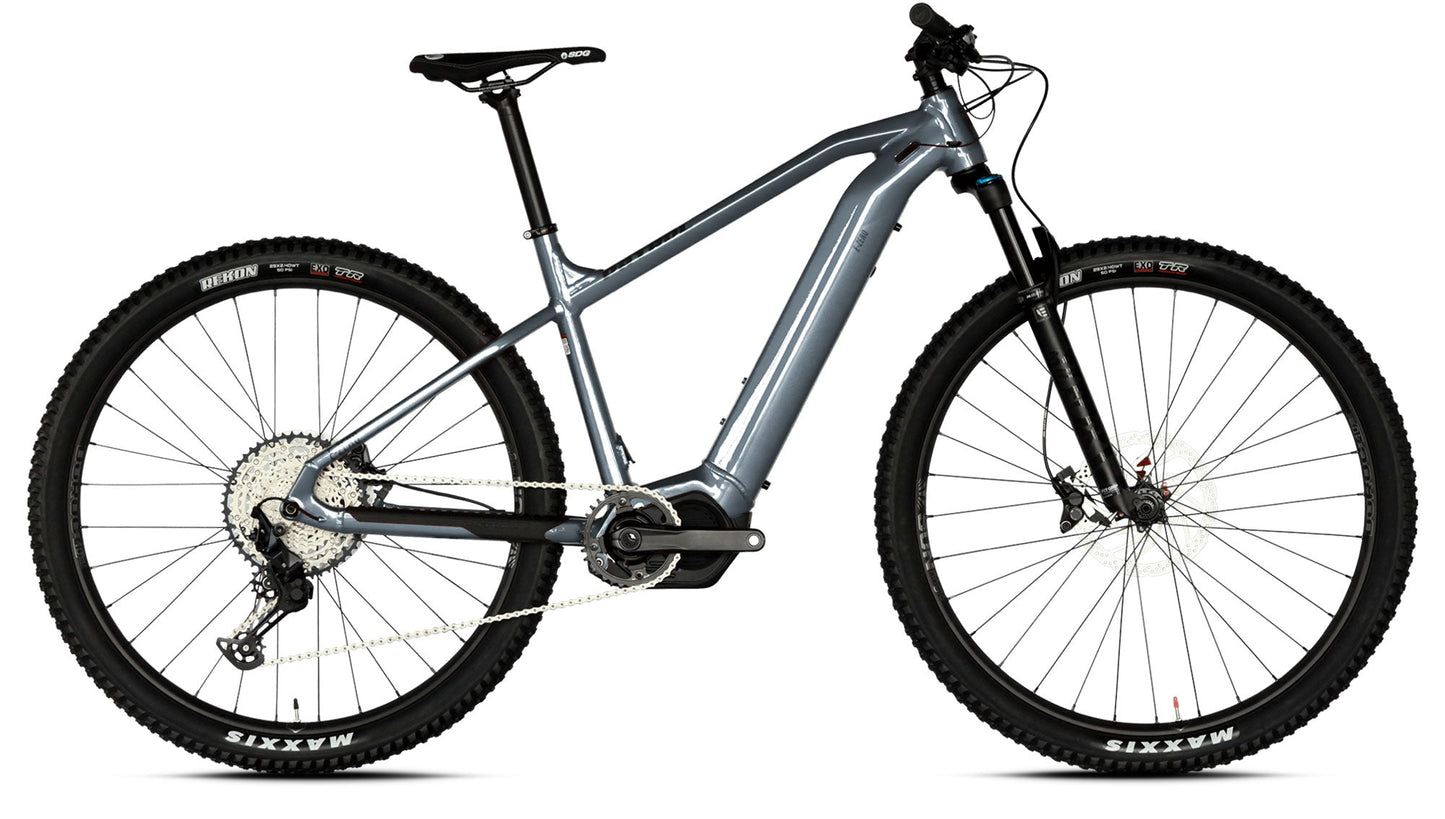

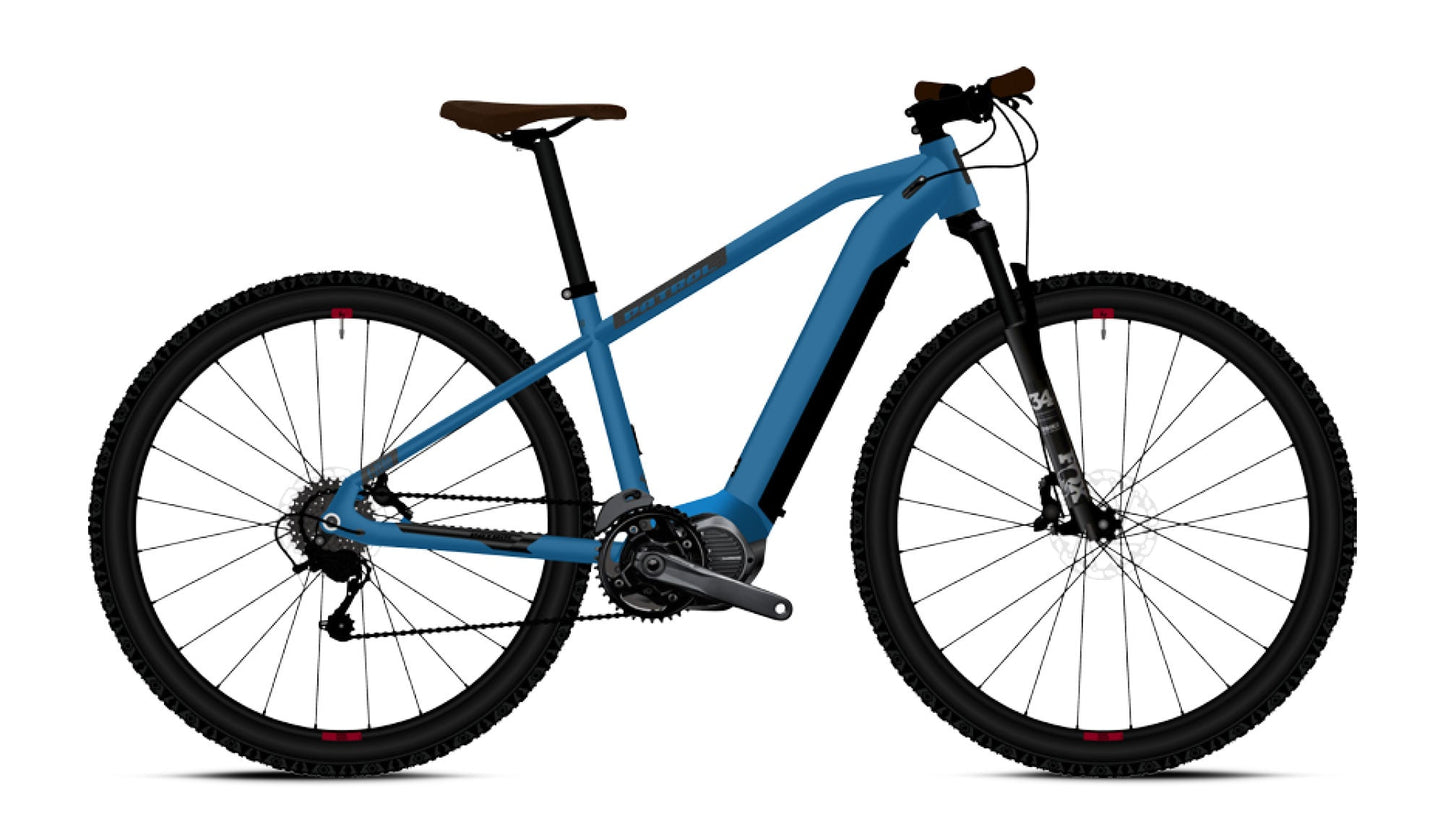

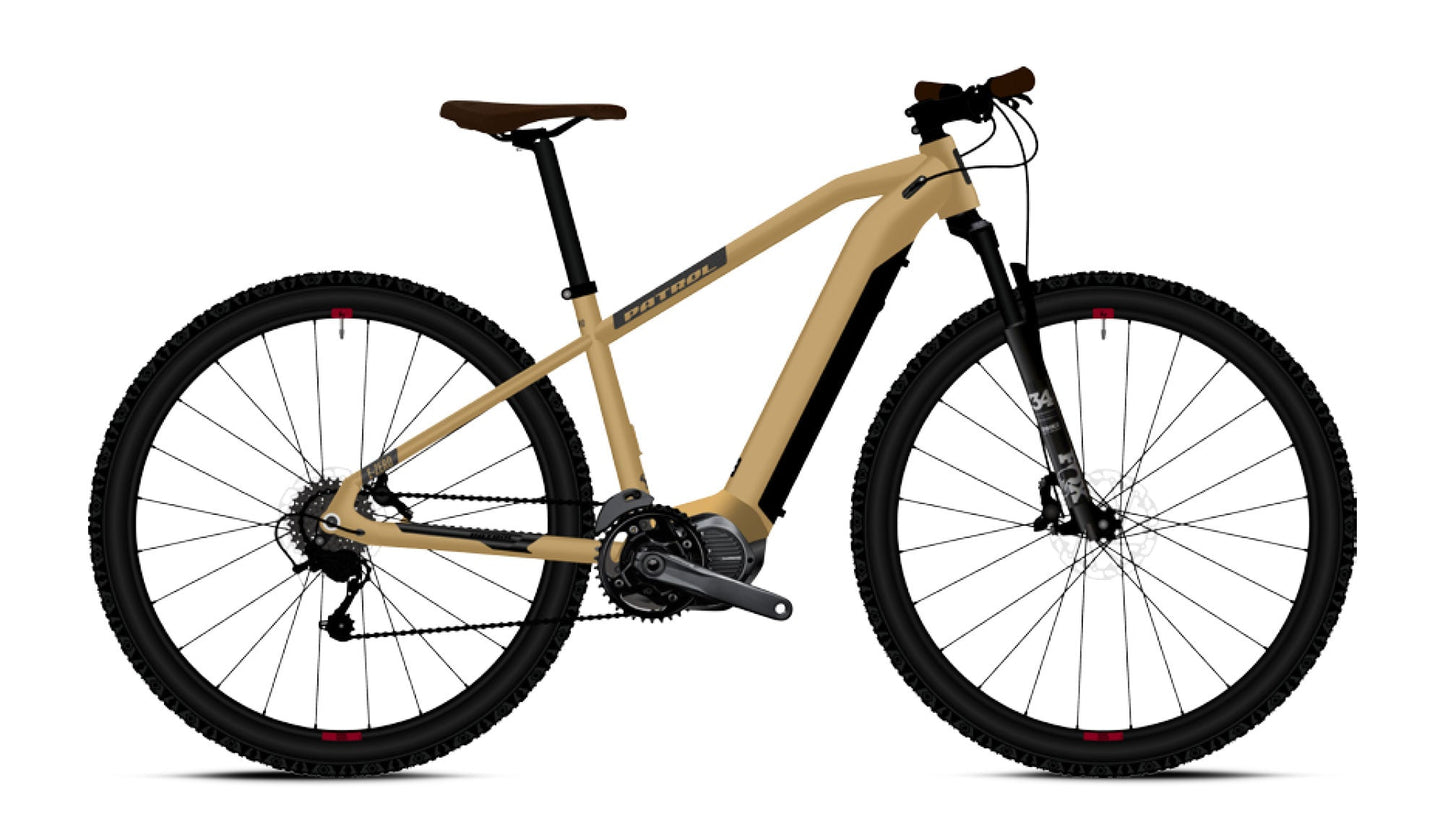

Patrol E-ZERO SL
Patrol E-ZERO SL
SL
PATROL alloy electric XC, 12Å~148 mm
X FUSION Slide RC, 140mm travel
SHIMANO Deore M5100, 11s
SHIMANO Deore M5100-R
SHIMANO E8000, SM-CRE80-12-B, 34t
SHIMANO Deore M5100, 11s, 11-42t
SHIMANO MT510
SUNringlé Düroc 40
MAXXIS Rekon, 29Å~2.40
SHIMANO Steps E7000
630Wh
Specifications
| E-Bike | |
|---|---|
| Drive Unit (Motor) | Shimano Steps E8000, Mid-drive motor, 250 Watt | 75 Nm |
| Controls | Coloured, compact Shimano E8000 display, easy operation via ergonomic Shimano Firebolt Remote lever |
| Battery | SMP, 630Wh |
| Charger | Approx. 3 hours per battery |
| Wheels | |
| Rims | 29" Sun Ringle Duroc SD37 MTB Rim |
| Rear Hub | Shimano |
| Inner Tubes | - |
| Spokes | - |
| Rear Tire | MAXXIS Rekon, 29×2.4WT, EXO/TR |
| Front Tire | MAXXIS Rekon, 29×2.4WT, EXO/TR |
| Front Hub | Shimano |
| Frameset | |
| Frame | PATROL E-ZERO alloy, 12×148mm |
| Drivetrain | |
| Chainrings | Shimano |
| Shift Levers | Shimano SLX SL-M7100 Shift Lever |
| Crankset | - |
| Chain | - |
| Rear Derailleur | - |
| Bottom Braket | - |
| Cassette | Shimano SLX M7100, 12s, 10-51t |
| Cockpit | |
| Seatpost | - |
| Saddle | - |
| Stem | PATROL Enduro (Forged alloy, 4-bolt, 5mm rise, 40mm) |
| Handlebars | PATROL Enduro |
| Grips | - |
| Brakes | |
| Rear Brake | Shimano MT420 4-Piston hydraulic disc brakeset, 180mm |
| Front Brake | Shimano MT420 4-Piston hydraulic disc brakeset, 200mm |
| Suspension | |
| Fork | MARZOCCHI Bomber Z2, 110mm travel, 44mm rake |
* Specifications are subject to change without notice.
Shimano Steps 8000 Drive Unit
The new STEPS MTB is going to change the way you hit the trails with its fully customizable power-assist settings! Both Boost and Trail Modes can be tailored to fit your riding style.
With the increase of power-assist level possibilities, you'll experience a much more intuitive ride. Your e-bike will feel like an extension of your body, reacting exactly as expected – at all times and on all terrains.
The setting options are displayed as (current) Dynamic mode, along with the newly added Explorer and Custom modes. All three options include Eco power-assist, in addition to Boost and Trail.
Geometry
| Small | Medium | Large | X-Large | |
|---|---|---|---|---|
| 1 Head Tube Angle | 69.5° | 69.5° | 69.5° | 69.5° |
| 2 Head Tube Length | 110mm | 110mm | 110mm | 120mm |
| 3 Top Tube Horizontal | 567mm | 599mm | 620mm | 644mm |
| 4 Reach | 393mm | 425mm | 449mm | 467mm |
| 5 Standover | 709mm | 719mm | 720mm | 721mm |
| 6 Stack | 608mm | 6108mm | 608mm | 617mm |
| 7 Seat Tube Length | 400mm | 445mm | 470mm | 495mm |
| 8 Seat Angle | 74° | 74° | 74° | 74° |
| 9 Bottom Bracket Height | 328mm | 328mm | 328mm | 328mm |
| 10 Bottom Bracket Drop | -45mm | -45mm | -45mm | -45mm |
| 11 Chainstay Length | 465mm | 465mm | 465mm | 465mm |
| 12 Wheelbase | 1120mm | 1153mm | 1173m | 1198mm |
